Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Bolzendurchmesser d1 | 10 |
|---|
| Gewinde d2 | M 16 |
|---|
| Form | CK - mit Rastsperre, mit Kontermutter |
|---|
| d3 | 2 |
|---|
| l1 min. | 9 |
|---|
| l2 | 34 |
|---|
| l3 | 44 |
|---|
| l4 | 25 |
|---|
| m | 22 |
|---|
| Federdruck in N Anfang | 7 |
|---|
| Ende | 27 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,071 kg |
|---|

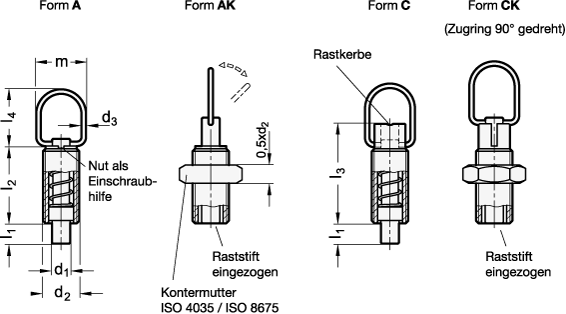

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 413 |
|---|
| Order designation | GN 413-10-M16-CK-ST |
|---|
| EAN | 4045525907508 |
|---|
| Manufacturer designation (German) | Rastbolzen, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
