Technical data (manufacturer information, German terms)
| Durchmesser d1 (KD) | 12 |
|---|
| Form | KD - Hülse Kunststoff, Kugel Kunststoff, normaler Federdruck |
|---|
| KU KD | 10 |
|---|
| d3 | 13 |
|---|
| l2 | 1,5 |
|---|
| w Federweg KU KD | 3,3 |
|---|
| KU / KD Anfang | 14 |
|---|
| Ende | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,002 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 614 |
|---|
| Order designation | GN 614-12-KD |
|---|
| EAN | 4045525312302 |
|---|

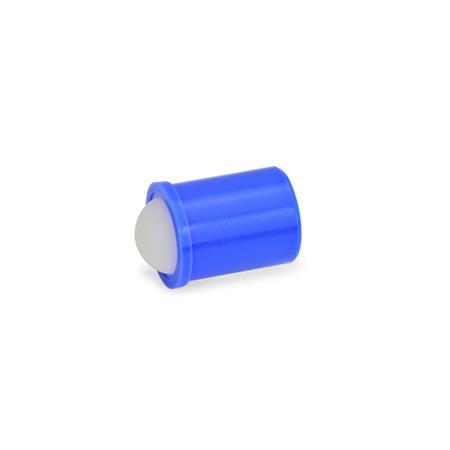

| Manufacturer designation (German) | Federnde Druckstücke zum Einpressen, mit Kugel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
