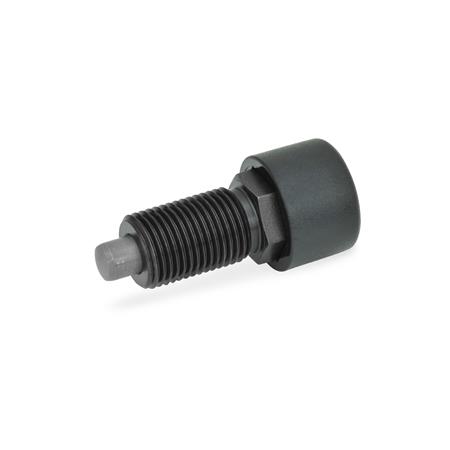

Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 8 |
|---|
| Form | A - ohne Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| Aufnahmegewinde | M 16 x 1,5 |
|---|
| d3 | 25 |
|---|
| e | 19 |
|---|
| l1 | 8 |
|---|
| l2 | 46 |
|---|
| l3 | 25,5 |
|---|
| l4 | 54,5 |
|---|
| l5 | 11 |
|---|
| sw | 17 |
|---|
| w1 | 3 |
|---|
| w2 | 11 |
|---|
| Federdruck in N ≈ Anfang | 18 |
|---|
| Ende | 44 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,061 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 514 |
|---|
| Order designation | GN 514-8-A |
|---|
| EAN | 4045525583481 |
|---|
| Manufacturer designation (German) | Verriegelungsbolzen, mit Herzkurven-Mechanik |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
