Technical data (manufacturer information, German terms)
| d1 Stift Bohrung | 20 |
|---|
| s | 30 |
|---|
| Form | A - mit Zugring, ohne Rastsperre |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | ST - Stahl-Feinguss |
|---|
| b | 10,1 |
|---|
| d2 | 10,1 |
|---|
| d3 | 50 |
|---|
| d4 | 10 |
|---|
| h1 | 15 |
|---|
| h2 | 5 |
|---|
| h3 | 15 |
|---|
| k1 | 14 |
|---|
| k2 | 34 |
|---|
| k3 | 10 |
|---|
| l1 ≈ | 103 |
|---|
| l2 | 20 |
|---|
| l3 | 54 |
|---|
| l4 | 78 |
|---|
| l5 | 80 |
|---|
| m | 55 |
|---|
| sw | 17 |
|---|
| Federdruck in N ≈ Anfang | 22 |
|---|
| Ende | 70 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,820 kg |
|---|

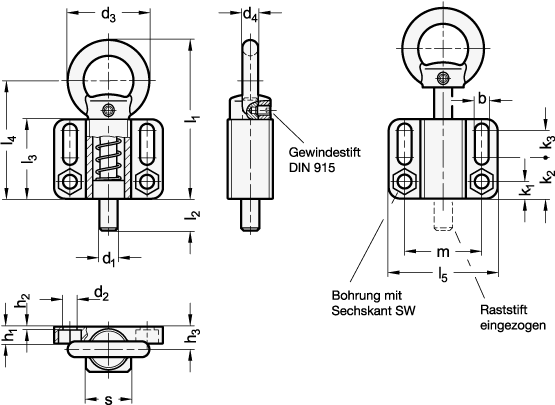

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 722.6 |
|---|
| Order designation | GN 722.6-20-30-A-SW |
|---|
| EAN | 4045525586772 |
|---|
| Manufacturer designation (German) | Rastbolzen, Stahl, mit Anschraubflansch, ohne Rastsperre |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
