Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| d1 Stift Bohrung | 10 |
|---|
| l1 | 12 |
|---|
| Form | A - vorne abschließbar |
|---|
| Kennzeichen | SC - mit Schlüssel (Schließung einheitlich) |
|---|
| d2 | M 16 x 1,5 |
|---|
| d3 | 34 |
|---|
| d4 | 23 |
|---|
| k | 21 |
|---|
| l2 ≈ | 68,5 |
|---|
| l3 | 26 |
|---|
| sw | 19 |
|---|
| Federdruck in N ≈ Anfang | 11 |
|---|
| Ende | 33 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,136 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 814 |
|---|
| Order designation | GN 814-10-12-A-SC-NI |
|---|
| EAN | 4045525679504 |
|---|

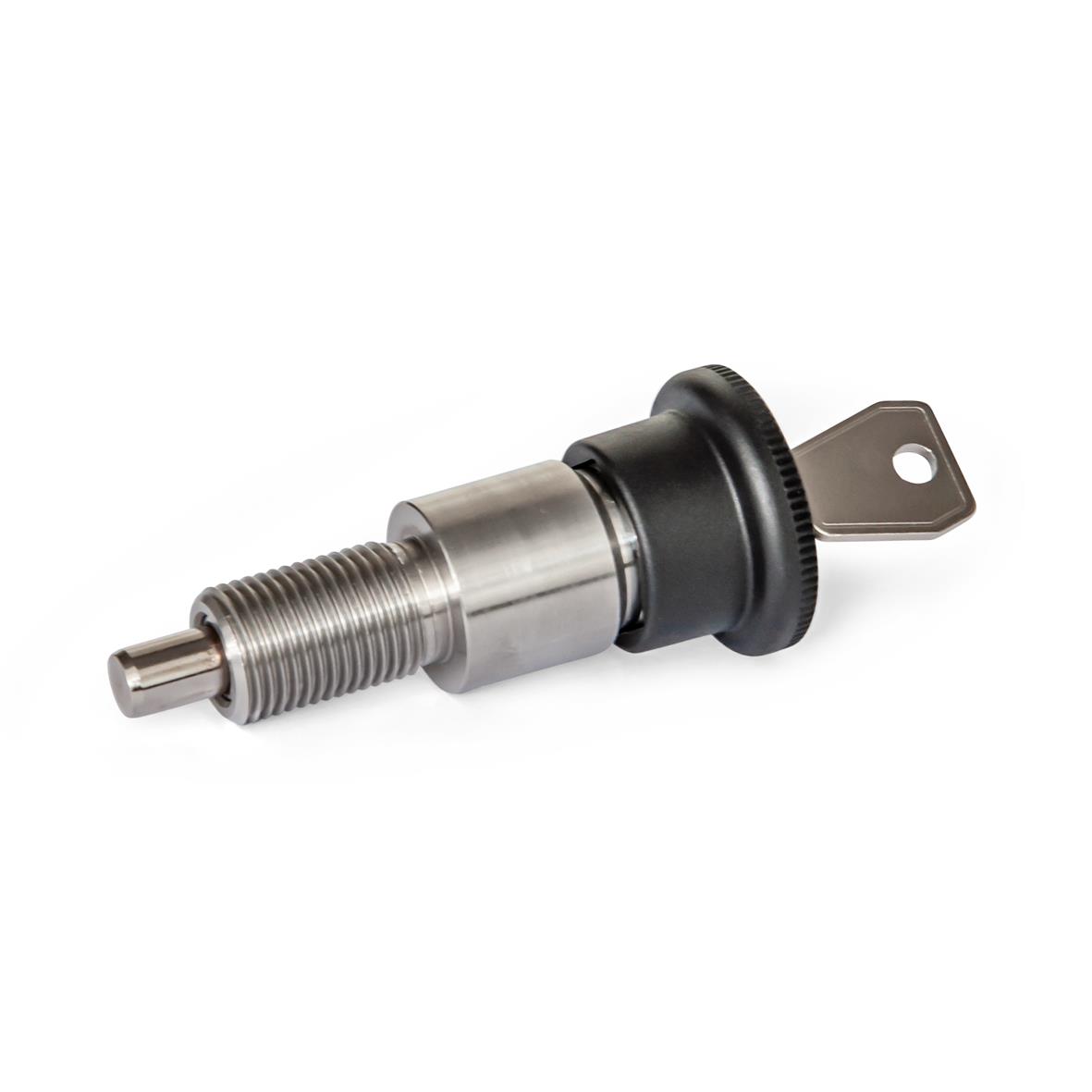

| Manufacturer designation (German) | Edelstahl-Rastbolzen, abschließbar |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
