Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 6 |
|---|
| Aufnahmegewinde d2 | M 10 |
|---|
| Form | CK - mit Rastsperre, mit Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 3,5 |
|---|
| e | 11,5 |
|---|
| l1 | 51 |
|---|
| l2 min. | 14 |
|---|
| l3 | 33,5 |
|---|
| l4 | 3,7 |
|---|
| l5 min. | 24 |
|---|
| sw | 10 |
|---|
| max. Anzugsmoment in Nm | 10 |
|---|
| Federdruck in N≈ Anfang | 4 |
|---|
| Ende | 16 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,030 kg |
|---|

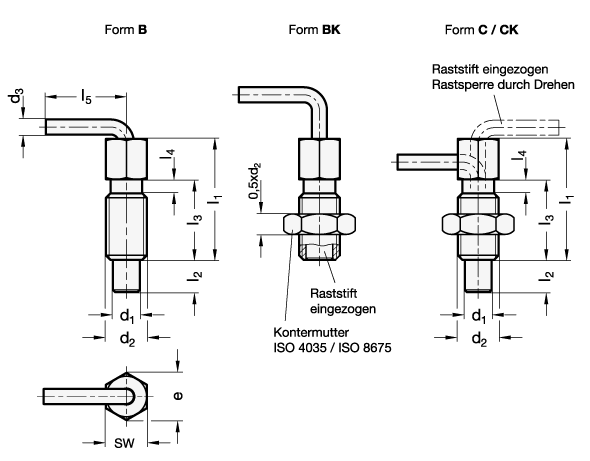

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7017 |
|---|
| Order designation | GN 7017-6-M10-CK-ST |
|---|
| EAN | 4045525363915 |
|---|
| Manufacturer designation (German) | Rastbolzen, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
