Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 8 |
|---|
| Länge l1 | 8 |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| b1 | 46 |
|---|
| b2 | 20 |
|---|
| d2 | 12 |
|---|
| d3 | 31 |
|---|
| d4 | 5,3 |
|---|
| d5 | 10,4 |
|---|
| k | 34 |
|---|
| l2 | 44 |
|---|
| l3 | 2,5 |
|---|
| l4 | 5,5 |
|---|
| l5 Rastweg | 8 |
|---|
| Federdruck in N ≈ Anfang | 13 |
|---|
| Ende | 26 |
|---|
| Axiale Belastbarkeit in N | 500 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,059 kg |
|---|

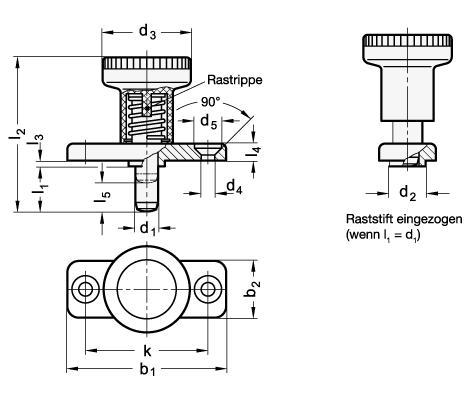

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 608.1 |
|---|
| Order designation | GN 608.1-8-8 |
|---|
| EAN | 4045525309319 |
|---|
| Manufacturer designation (German) | Rastbolzen mit Rastsperre, Raststift Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
