Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Bolzendurchmesser d1 | 5 |
|---|
| Gewinde d2 | M 10 |
|---|
| Form | AK - ohne Rastsperre, mit Kontermutter |
|---|
| d3 | 1,5 |
|---|
| l1 min. | 5 |
|---|
| l2 | 22 |
|---|
| l3 | 28 |
|---|
| l4 | 23 |
|---|
| m | 18 |
|---|
| Federdruck in N Anfang | 5 |
|---|
| Ende | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,016 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 413 |
|---|
| Order designation | GN 413-5-M10-AK-ST |
|---|
| EAN | 4045525907362 |
|---|

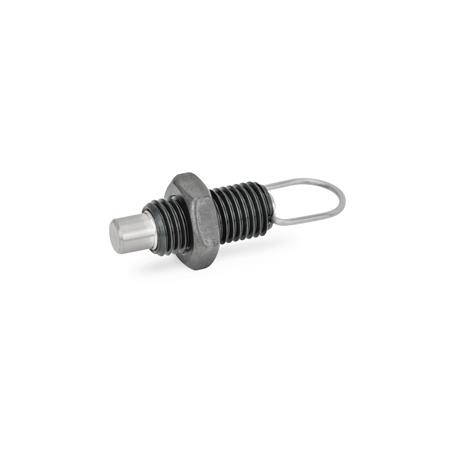

| Manufacturer designation (German) | Rastbolzen, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
