Technical data (manufacturer information, German terms)
| Gewinde (Form KN) d1 | M 6 |
|---|
| Form | SN - Bolzen Edelstahl, normaler Federdruck |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d2 | 2,7 |
|---|
| Länge l | 20 |
|---|
| w Federweg | 2,5 |
|---|
| Federdruck in N ≈ normal (Form SN / KN) Anfang | 7 |
|---|
| Anfang | 22 |
|---|
| Artikel-Nr. Schraubendreher | 611.5-M6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,002 kg |
|---|

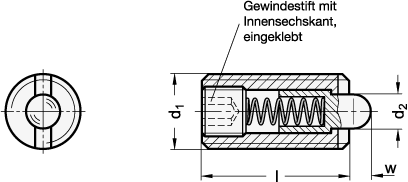

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 616 |
|---|
| Order designation | GN 616-M6-SN |
|---|
| EAN | 4045525314979 |
|---|
| Manufacturer designation (German) | Federnde Druckstücke, Gehäuse Edelstahl, Bolzen Edelstahl / Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
