Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 6 |
|---|
| Gewinde d2 | M 12 |
|---|
| Form | A - ohne Kunststoffkappe, ohne Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | 12 |
|---|
| l1 | 47 |
|---|
| l2 | 8 |
|---|
| l3 | 26 |
|---|
| l4 | 26 |
|---|
| l5 | 32 |
|---|
| Federdruck in N ≈ Anfang | 8 |
|---|
| Ende | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,028 kg |
|---|

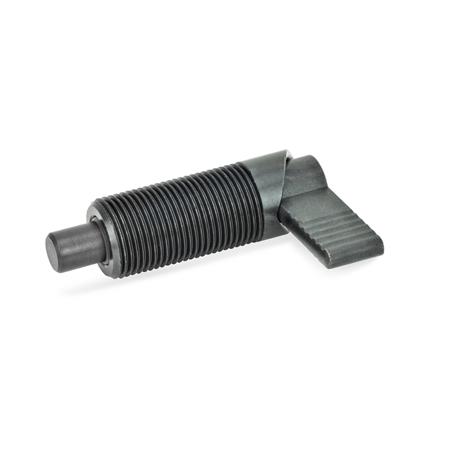

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 612 |
|---|
| Order designation | GN 612-6-M12-A |
|---|
| EAN | 4045525591455 |
|---|
| Manufacturer designation (German) | Rastriegel, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
