Technical data (manufacturer information, German terms)
| Bohrungsdurchmesser d1 | 8 |
|---|
| Form | LKU - Befestigung links, mit Druckstück |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| d2 Kugel-Ø | 6,5 |
|---|
| d3 für Senkschraube DIN 7991 | 4,3 |
|---|
| d32 | M 4 |
|---|
| d4 | 4 |
|---|
| b | 10,5 |
|---|
| h1 | 5,25 |
|---|
| h2 | 4,2 |
|---|
| l1 | 9,5 |
|---|
| l2 | 4 |
|---|
| w Federweg | 1,9 |
|---|
| Federdruck in N ≈ Anfang | 8 |
|---|
| Ende | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,007 kg |
|---|

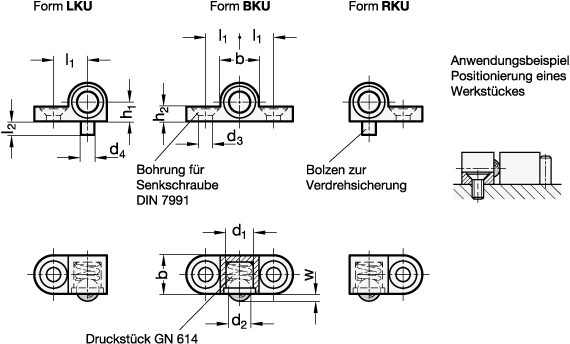

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 614.1 |
|---|
| Order designation | GN 614.1-8-LKU |
|---|
| EAN | 4045525862845 |
|---|
| Manufacturer designation (German) | Seitendruckstücke, Zink-Druckguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 79070000 |
|---|
| eCl@ss 5.1.4 | 21130692 |
|---|
