Technical data (manufacturer information, German terms)
| Form | K - Kegelspitze, Stahl |
|---|
| Außendurchmesser d1 | 3 |
|---|
| Gesamtlänge l0 | 16 |
|---|
| Werkstoff | ST - Stahl |
|---|
| h | 8,5 |
|---|
| l1 | 13 |
|---|
| l2 | 10,7 |
|---|
| F1 Federdruck in N ≈ | 4,8 |
|---|
| F2 Federdruck in N ≈ | 8,4 |
|---|
| RoHS | Ja |
|---|

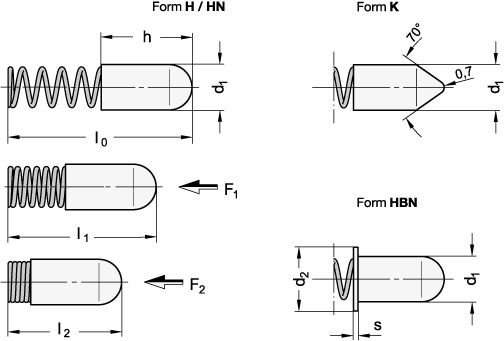

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 610 |
|---|
| Order designation | GN 610-3-16-K |
|---|
| EAN | 4045525309715 |
|---|
| Manufacturer designation (German) | Federhülsen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73209090 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
