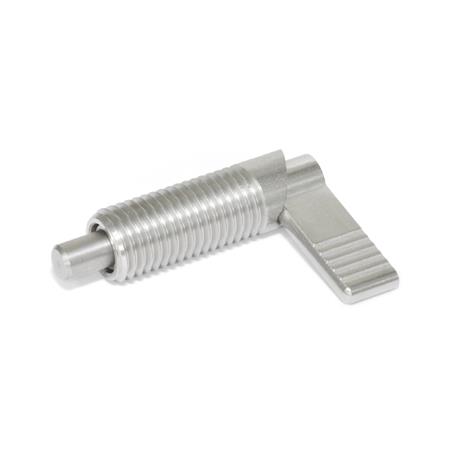

Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion – Ganter GN 721.5-5-M10X1-LA

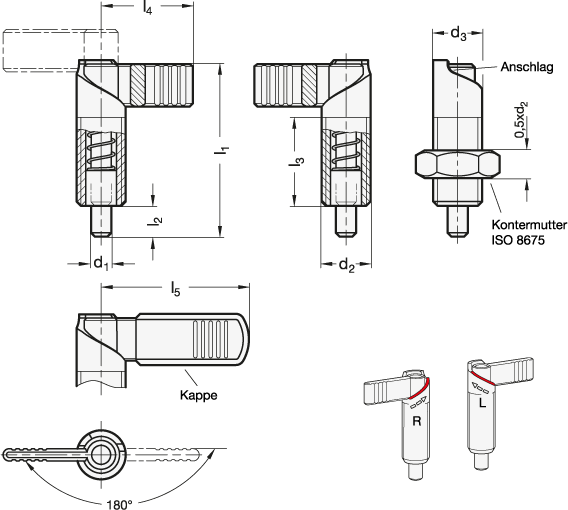

Dimensional drawing Ganter GN 721.5-5-M10X1-LA
Preview: Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion – Ganter GN 721.5-5-M10X1-LA
Preview: Dimensional drawing Ganter GN 721.5-5-M10X1-LA
Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion
Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion – Ganter GN 721.5-5-M10X1-LA
Dimensional drawing Ganter GN 721.5-5-M10X1-LA
Mobile Preview: Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion – Ganter GN 721.5-5-M10X1-LA
Mobile Preview: Dimensional drawing Ganter GN 721.5-5-M10X1-LA

Rastriegel GN 721.5, Edelstahl, ohne Rastfunktion

Product No.:
721.5-5-M10X1-LA
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Bolzendurchmesser d15
    Aufnahmegewinde d2M 10 x 1
    FormLA - Riegel linkssteigend
    WerkstoffNI - Edelstahl
    d310
    l137,5
    l26
    l319
    l421
    Federdruck in N ≈ Anfang7
    Ende20
    RoHSJa
    Gewicht0,090 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 721.5
    Order designationGN 721.5-5-M10X1-LA
    EAN4045525128071
    Manufacturer designation (German)Edelstahl-Rastriegel, ohne Rastfunktion
    Order unitPiece
    Customs tariff number73182900
    eCl@ss 5.1.423100190
