Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 6 |
|---|
| Rastweg l1 | 6 |
|---|
| Form | BK - ohne Rastsperre, mit Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | M 12 x 1,5 |
|---|
| d3 | 23 |
|---|
| k | 30 |
|---|
| l2 | 58 |
|---|
| l3 | 22 |
|---|
| l4 | 6 |
|---|
| sw | 14 |
|---|
| Federdruck in N ≈ Anfang | 6,5 |
|---|
| Ende | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,043 kg |
|---|

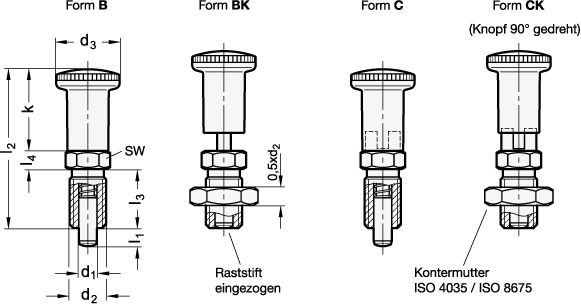

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 817.2 |
|---|

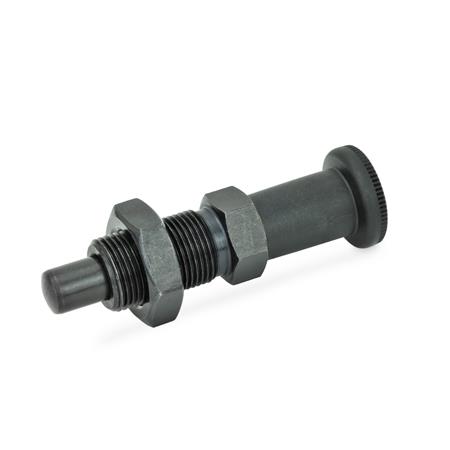

| Order designation | GN 817.2-6-6-BK |
|---|
| EAN | 4045525636088 |
|---|
| Manufacturer designation (German) | Rastbolzen, Stahl mit langem Bedienungsknopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
