Technical data (manufacturer information, German terms)
| Innengewinde d | M 10 x 1 |
|---|
| Oberfläche | BT - brüniert |
|---|
| Werkstoff | ST - Stahl |
|---|
| b | 3,5 |
|---|
| e | 16,6 |
|---|
| s | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,003 kg |
|---|

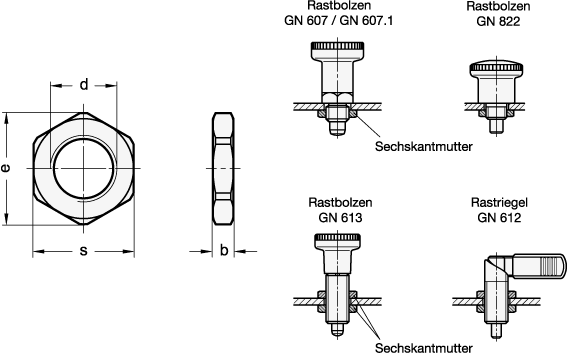

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 909 |
|---|
| Order designation | GN 909-M10X1-BT |
|---|
| EAN | 4045525902152 |
|---|
| Manufacturer designation (German) | Niedrige Sechskantmuttern, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181692 |
|---|
| eCl@ss 5.1.4 | 23110701 |
|---|
