Technical data (manufacturer information, German terms)
| Bolzendurchmesser d | 6 |
|---|
| Flanschbreite b1 | 38 |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| Istmaß | 6,2 |
|---|
| b2 | 32 |
|---|
| b3 | 16 |
|---|
| b4 | 5,4 |
|---|
| h1 | 8,5 |
|---|
| h2 | 6 |
|---|
| k1 | 27 |
|---|
| k2 | 5,5 |
|---|
| k3 | 21 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,051 kg |
|---|

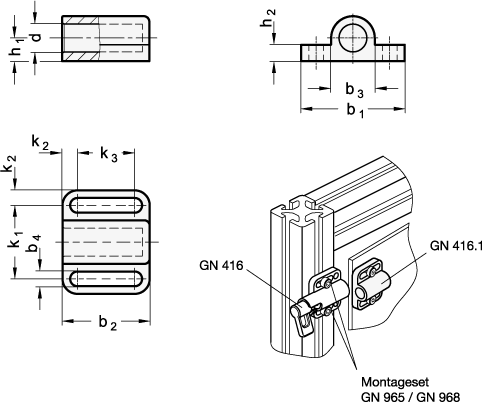

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 416.1 |
|---|
| Order designation | GN 416.1-6-38 |
|---|
| EAN | 4045525965829 |
|---|
| Manufacturer designation (German) | Raststücke |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83016000 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
