Technical data (manufacturer information, German terms)
| Werkstoff | ZD - Zink-Druckguss |
|---|
| b1 | 39 |
|---|
| Form | A1 - Zylinder, liegend |
|---|
| Kennziffer | 1 - normaler Federdruck |
|---|
| Ausführung | NR - Edelstahl, geriffelt |
|---|
| b2 | 14,5 |
|---|
| d | 6,5 |
|---|
| h1 | 1 |
|---|
| h2 | 12 |
|---|
| k | 6 |
|---|
| l1 | 35 |
|---|
| l2 ≈ | 8,2 |
|---|
| l3 | 10 |
|---|
| l4 ≈ | 4,7 |
|---|
| m1 | 27 |
|---|
| m2 | 6,5 |
|---|
| m3 | 15 |
|---|
| m4 | 13,5 |
|---|
| r | 13,75 |
|---|
| s | 22 |
|---|
| Federdruck F in N ≈ normal (Kennziffer 1) Anfang | 17 |
|---|
| Ende | 33 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,092 kg |
|---|

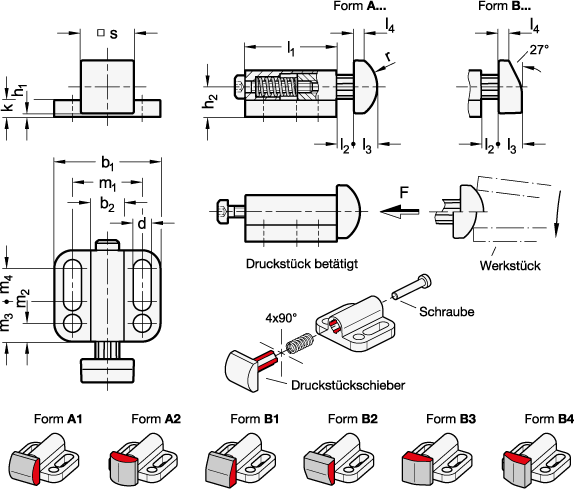

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 415 |
|---|
| Order designation | GN 415-ZD-39-A1-NR-1 |
|---|
| EAN | 4045525581913 |
|---|
| Manufacturer designation (German) | Seitendruckstücke |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 21130611 |
|---|
