Technical data (manufacturer information, German terms)
| d1 Form N / R | 80 |
|---|
| h | 20 |
|---|
| Form | R - mit Kunststoffkappe, rutschfest |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 16,5 |
|---|
| e ≈ | 8,3 |
|---|
| s | 2,5 |
|---|
| passend für Gewindestift DIN 6332 | M 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,438 kg |
|---|

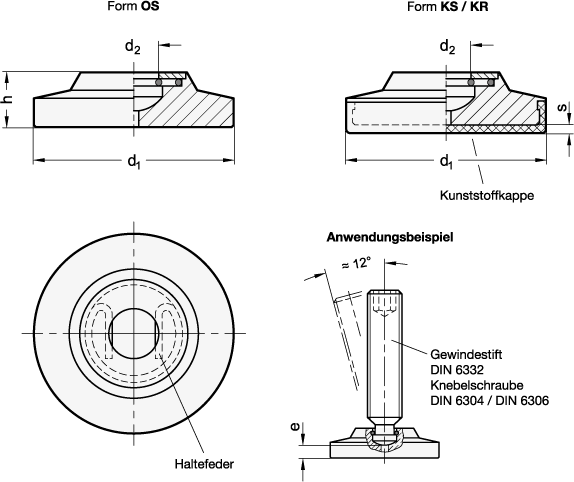

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6311.3 |
|---|
| Order designation | GN 6311.3-80-20-R |
|---|
| EAN | 4045525881068 |
|---|
| Manufacturer designation (German) | Fußteller, für Gewindestifte DIN 6332 / für Knebelschrauben DIN 6304 / DIN 6306, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 23119090 |
|---|
