Technical data (manufacturer information, German terms)
| Innendurchmesser d1 | 32 |
|---|
| Form | E - Gewindestift mit Innensechskant DIN 914 |
|---|
| Oberfläche | ZB - verzinkt, blau passiviert |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 50 |
|---|
| d3 | M8x12 |
|---|
| b | 16 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,140 kg |
|---|

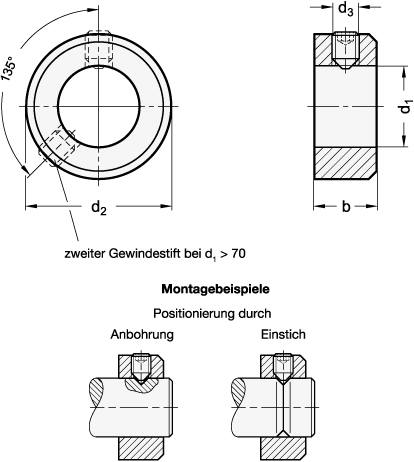

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 705 |
|---|
| Order designation | GN 705-32-E-ZB |
|---|
| EAN | 4045525828469 |
|---|
| Manufacturer designation (German) | Stellringe, Stahl verzinkt |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
