Technical data (manufacturer information, German terms)
| Gewinde d1 | M 8 |
|---|
| Länge l1 | 40 |
|---|
| Form | K - Kugel Kunststoff, Druckfläche plan |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 8,5 |
|---|
| d3 Kugel-Ø | 10 |
|---|
| l2 | 13 |
|---|
| sw | 13 |
|---|
| e | 15 |
|---|
| Statische Belastbarkeit max. in kN Form B | 20 |
|---|
| Form R | 9 |
|---|
| Form K | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,021 kg |
|---|

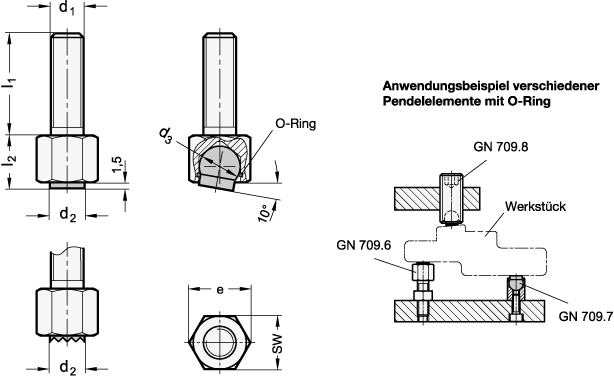

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 709.6 |
|---|
| Order designation | GN 709.6-M8-40-K |
|---|
| EAN | 4045525886858 |
|---|
| Manufacturer designation (German) | Pendelelemente |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21029090 |
|---|
