Technical data (manufacturer information, German terms)
| Gewinde d1 | M 8 |
|---|
| Gewindelänge l1 | 50 |
|---|
| Werkstoff (Druckzapfen) | MS - Messing |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 6 |
|---|
| l2 | 1,5 |
|---|
| sw1 | 4 |
|---|
| sw2 | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,015 kg |
|---|

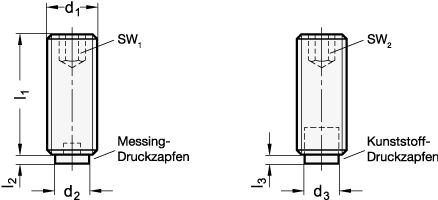

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 913.3 |
|---|
| Order designation | GN 913.3-M8-50-MS |
|---|
| EAN | 4045525392977 |
|---|

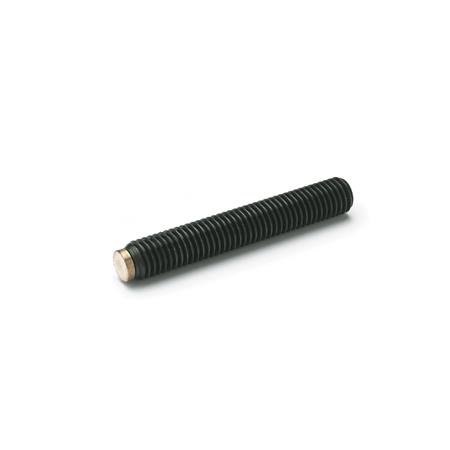

| Manufacturer designation (German) | Gewindestifte mit Messing- / Kunststoff-Zapfen, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181542 |
|---|
| eCl@ss 5.1.4 | 23110302 |
|---|
