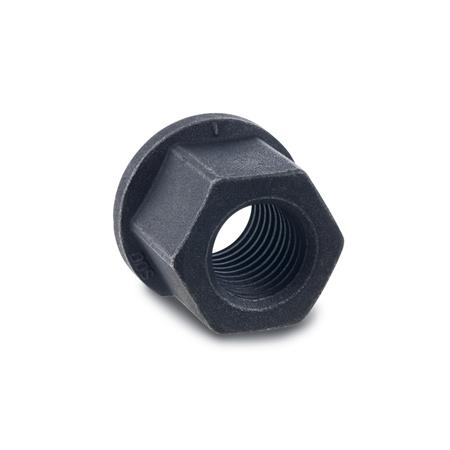

Sechskantmuttern DIN 6331 – Ganter DIN 6331-M16

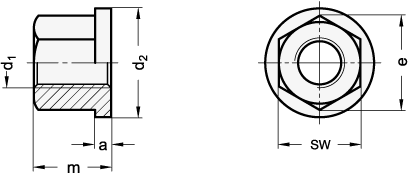

Dimensional drawing Ganter DIN 6331-M16
Preview: Sechskantmuttern DIN 6331 – Ganter DIN 6331-M16
Preview: Dimensional drawing Ganter DIN 6331-M16
Sechskantmuttern DIN 6331
Sechskantmuttern DIN 6331 – Ganter DIN 6331-M16
Dimensional drawing Ganter DIN 6331-M16
Mobile Preview: Sechskantmuttern DIN 6331 – Ganter DIN 6331-M16
Mobile Preview: Dimensional drawing Ganter DIN 6331-M16

Sechskantmuttern DIN 6331

Product No.:
6331-M16
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Gewinde d1M 16
    WerkstoffST - Stahl
    d231
    a5
    e min.26,8
    m24
    sw24
    RoHSJa
    Gewicht0,066 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partDIN 6331
    Order designationDIN 6331-M16
    EAN4045525327122
    Manufacturer designation (German)Sechskantmuttern mit Bund
    Order unitPiece
    Customs tariff number73181699
    eCl@ss 5.1.423110701
