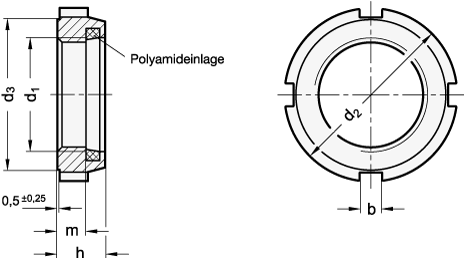

Dimensional drawing Ganter GN 1804.1-M12X1,5
Mobile Preview: Nutmuttern GN 1804.1, selbstsichernd – Ganter GN 1804.1-M12X1,5
Mobile Preview: Dimensional drawing Ganter GN 1804.1-M12X1,5

Nutmuttern GN 1804.1, selbstsichernd

Product No.:
1804.1-M12X1,5
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Gewinde d1M 12 x 1,5
    WerkstoffST - Stahl
    d221
    d318
    b3
    h9,2
    m5,7
    Anzahl der Nuten4
    Hakenschlüssel1810-A16-20
    RoHSJa
    Gewicht0,008 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 1804.1
    Order designationGN 1804.1-M12X1,5
    EAN4045525534551
    Manufacturer designation (German)Nutmuttern, Stahl, selbstsichernd
    Order unitPiece
    Customs tariff number73181692
    eCl@ss 5.1.490909090

    This product is compatible with (for example):

    Hakenschlüssel DIN 1810, Stahl – Ganter DIN 1810-A16-20
    Hakenschlüssel DIN 1810, Stahl
    Ganter DIN 1810-A16-20 – Hakenschlüssel, Stahl
