Technical data (manufacturer information, German terms)
| Schlüsselweite sw1 | 36 |
|---|
| Gewinde d1 | M 24 |
|---|
| Form | BR - Druckfläche plan, mit selbsttätiger Rückstellung |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d2 | 20 |
|---|
| d3 Kugel-Ø | 25 |
|---|
| e | 40 |
|---|
| l1 | 70 |
|---|
| l2 | 100 |
|---|
| sw2 | 36 |
|---|
| Statische Belastbarkeit max. in kN | 90 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,463 kg |
|---|

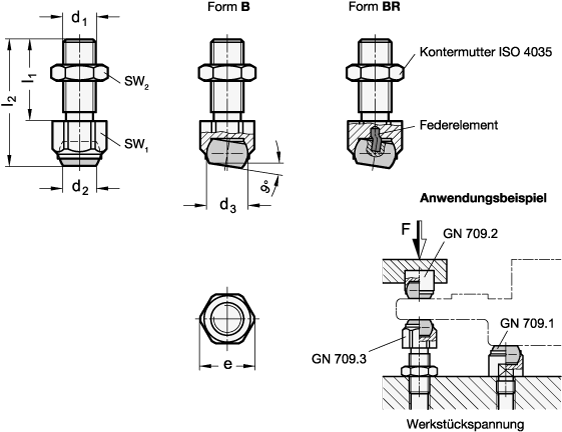

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 709.35 |
|---|
| Order designation | GN 709.35-36-M24-BR |
|---|
| EAN | 4045525423459 |
|---|
| Manufacturer designation (German) | Edelstahl-Pendelelemente, einstellbar |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21029090 |
|---|
