Technical data (manufacturer information, German terms)
| Bohrungsdurchmesser Form C d1 | 8,4 |
|---|
| Form | C - Kugelscheibe |
|---|
| d2 | 17 |
|---|
| d6 Schraube | M 8 |
|---|
| h1 | 0,6 |
|---|
| h2 | 3,2 |
|---|
| h5 ≈ | 5,6 |
|---|
| r | 12 |
|---|
| max. übertragbare statische Schraubenkraft in kN | 17 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,002 kg |
|---|

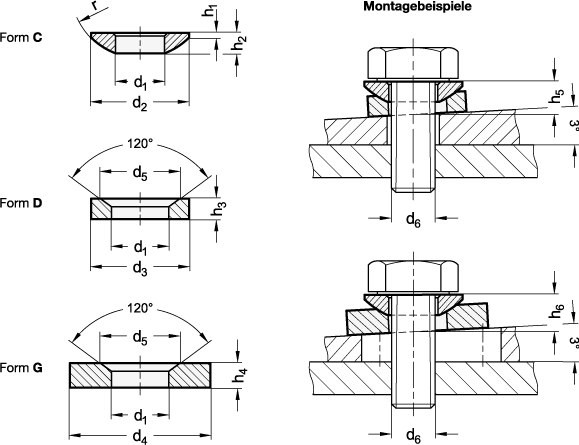

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 6319 |
|---|
| Order designation | DIN 6319-8,4-C |
|---|
| EAN | 4045525324817 |
|---|
| Manufacturer designation (German) | Kugelscheiben, Kegelpfannen, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182200 |
|---|
| eCl@ss 5.1.4 | 23099090 |
|---|
