Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Außendurchmesser d1 | 80 |
|---|
| Bohrungsdurchmesser d2 | 33 |
|---|
| Form | A - ohne Kontermutter |
|---|
| d3 | M 60 x 2 |
|---|
| h1 Form A | 76 |
|---|
| Form AK | 87 |
|---|
| h2 | 126 |
|---|
| h3 Verstellweg Form A | 50 |
|---|
| Form AK | 39 |
|---|
| für Schraube | M 30 |
|---|
| Statische Belastbarkeit F in kN F1 | 495 |
|---|
| F2 | 218 |
|---|
| Artikel-Nr. Hakenschlüssel | 1810-A80-90 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,875 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 350 |
|---|
| Order designation | GN 350-80-33-A-ST |
|---|
| EAN | 4045525457515 |
|---|

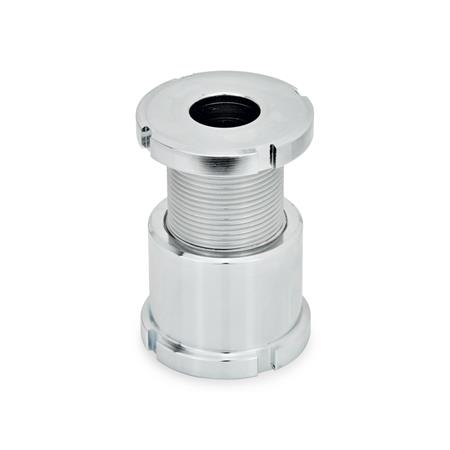

| Manufacturer designation (German) | Ausgleich-Elemente, hohe Ausführung, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 23119090 |
|---|
