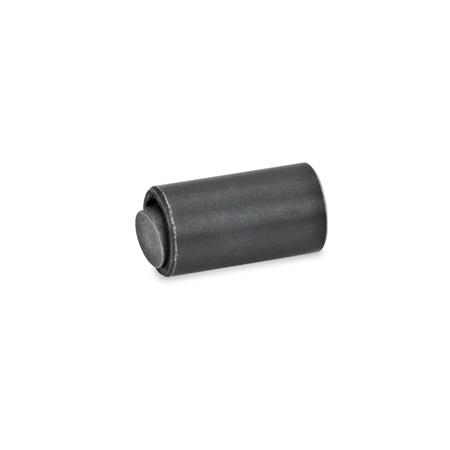

Pendelelemente GN 709.7 – Ganter GN 709.7-10-12-B

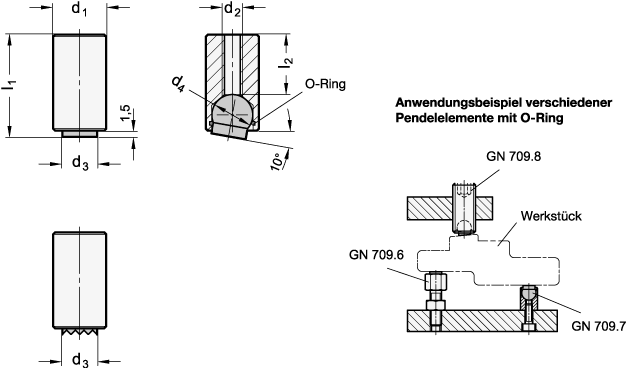

Dimensional drawing Ganter GN 709.7-10-12-B
Preview: Pendelelemente GN 709.7 – Ganter GN 709.7-10-12-B
Preview: Dimensional drawing Ganter GN 709.7-10-12-B
Pendelelemente GN 709.7
Pendelelemente GN 709.7 – Ganter GN 709.7-10-12-B
Dimensional drawing Ganter GN 709.7-10-12-B
Mobile Preview: Pendelelemente GN 709.7 – Ganter GN 709.7-10-12-B
Mobile Preview: Dimensional drawing Ganter GN 709.7-10-12-B

Pendelelemente GN 709.7

Product No.:
709.7-10-12-B
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Außendurchmesser d110
    Länge l112
    FormB - Kugel Stahl, Druckfläche plan
    WerkstoffST - Stahl
    GewindeM 4
    d36
    d4 Kugel-Ø7
    l24,1
    Statische Belastbarkeit Form B12
    Form R6
    Form K2
    RoHSJa
    Gewicht0,006 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 709.7
    Order designationGN 709.7-10-12-B
    EAN4045525886452
    Manufacturer designation (German)Pendelelemente
    Order unitPiece
    Customs tariff number84662020
    eCl@ss 5.1.421029090
