Technical data (manufacturer information, German terms)
| Schlüsselweite sw1 | 24 |
|---|
| Gewinde d1 | M 16 |
|---|
| Form | R - Druckfläche geriffelt |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 10,5 |
|---|
| d3 Kugel-Ø | 16 |
|---|
| e | 27 |
|---|
| l1 | 40 |
|---|
| l2 | 60,7 |
|---|
| sw2 | 24 |
|---|
| Statische Belastbarkeit max. in kN | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,115 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 709.3 |
|---|
| Order designation | GN 709.3-24-M16-R |
|---|
| EAN | 4045525461963 |
|---|

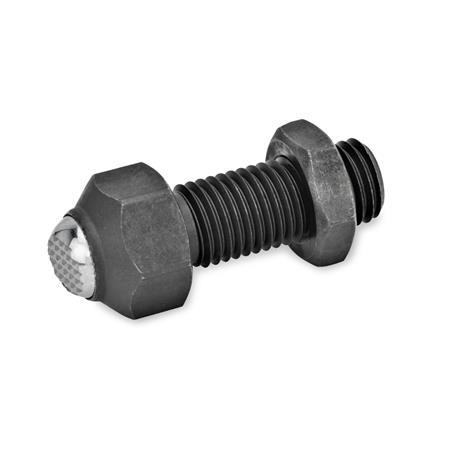

| Manufacturer designation (German) | Pendelelemente, einstellbar, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21029090 |
|---|
