Technical data (manufacturer information, German terms)
| Gewinde d1 | M 20 |
|---|
| Länge l1 | 160 |
|---|
| Werkstoff | ST - Stahl |
|---|
| l2 | 63 |
|---|
| d2 | 18 |
|---|
| d3 | 40 |
|---|
| s | 22 |
|---|
| d4 | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,477 kg |
|---|

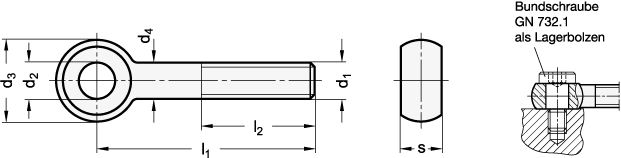

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 444 |
|---|
| Order designation | DIN 444-M20-160 |
|---|
| EAN | 4045525253230 |
|---|
| Manufacturer designation (German) | Augenschrauben, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23110603 |
|---|
