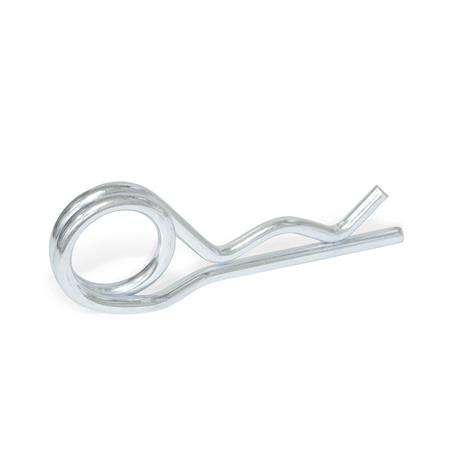

Federstecker GN 1024, Stahl
Federstecker GN 1024, Stahl – Ganter GN 1024-ST-7-D
Dimensional drawing Ganter GN 1024-ST-7-D
Mobile Preview: Federstecker GN 1024, Stahl – Ganter GN 1024-ST-7-D
Mobile Preview: Dimensional drawing Ganter GN 1024-ST-7-D

Federstecker GN 1024, Stahl

Product No.:
1024-ST-7-D
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    FormD - mit doppelter Windung
    d17
    WerkstoffST - Stahl
    Außendurchmesser d226 ... 40
    d3 empf. Aufnahme-Ø7,5
    h42
    l1152
    l292
    l360
    l496
    s19
    Kräfte in N ≈ Montage350
    Demontage210
    bei Bolzen-Ø40
    RoHSJa
    Gewicht0,135 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 1024
    Order designationGN 1024-ST-7-D
    EAN4045525064348
    Manufacturer designation (German)Federstecker, Stahl
    Order unitPiece
    Customs tariff number73209090
    eCl@ss 5.1.423100402
