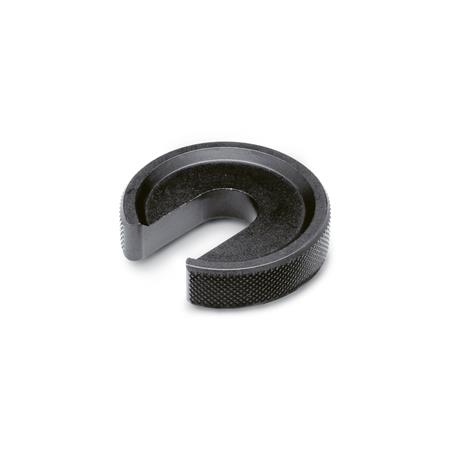

Vorsteckscheiben GN 183, Stahl – Ganter GN 183-40-12,5
Dimensional drawing Ganter GN 183-40-12,5
Preview: Vorsteckscheiben GN 183, Stahl – Ganter GN 183-40-12,5
Preview: Dimensional drawing Ganter GN 183-40-12,5
Vorsteckscheiben GN 183, Stahl
Vorsteckscheiben GN 183, Stahl – Ganter GN 183-40-12,5
Dimensional drawing Ganter GN 183-40-12,5
Mobile Preview: Vorsteckscheiben GN 183, Stahl – Ganter GN 183-40-12,5
Mobile Preview: Dimensional drawing Ganter GN 183-40-12,5

Vorsteckscheiben GN 183, Stahl

Product No.:
183-40-12,5
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Außendurchmesser d140
    Innendurchmesser b12,5
    WerkstoffST - Stahl
    d230
    s9
    t1,8
    für GewindeM 12
    RoHSJa
    Gewicht0,057 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 183
    Order designationGN 183-40-12,5
    EAN4045525072022
    Manufacturer designation (German)Vorsteckscheiben, Stahl
    Order unitPiece
    Customs tariff number73182900
    eCl@ss 5.1.423090101

    This product is compatible with (for example):

    Schwenkscheiben DIN 6371, Stahl – Ganter DIN 6371-38-7,5
    Schwenkscheiben DIN 6371, Stahl
    Ganter DIN 6371-38-7,5 – Schwenkscheiben, Stahl
    You do not have permission to view the prices
