Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 18 |
|---|
| Form | B - Druckfläche plan |
|---|
| Werkstoff | ST - Stahl |
|---|
| Gewinde | M 4 |
|---|
| d3 | 10,5 |
|---|
| d4 Kugel-Ø | 16 |
|---|
| d5 Aufnahmebohrung | 18 |
|---|
| l1 Form B | 17 |
|---|
| l3 max. Form B / R | 4 |
|---|
| t min. für maximale Belastbarkeit Form B / R | 8 |
|---|
| Statische Belastbarkeit max. in kN | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,030 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 709.2 |
|---|
| Order designation | GN 709.2-18-B |
|---|
| EAN | 4045525461857 |
|---|

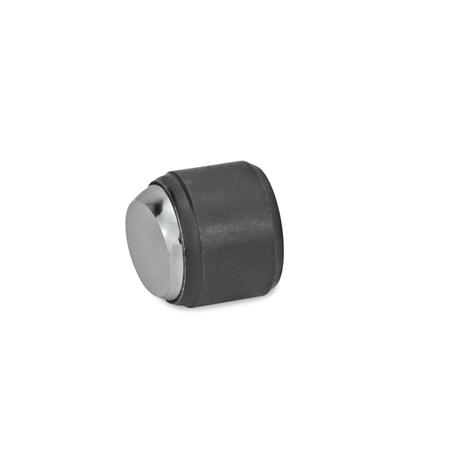

| Manufacturer designation (German) | Pendelelemente, mit Innengewinde, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21029090 |
|---|
