Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl-Feinguss |
|---|
| Außendurchmesser d1 | 75 |
|---|
| Anzahl der Zähne z | 36 |
|---|
| Form | B - mit Gewindebuchse |
|---|
| d3 Form B Form C | M 12 |
|---|
| d4 | 5 |
|---|
| d5 | 20 |
|---|
| h1 | 22 |
|---|
| m | 60 |
|---|
| s | 27 |
|---|
| t | 4 |
|---|
| w min. Ausrastweg | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,539 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 188 |
|---|
| Order designation | GN 188-75-36-B-NI |
|---|
| EAN | 4045525424432 |
|---|

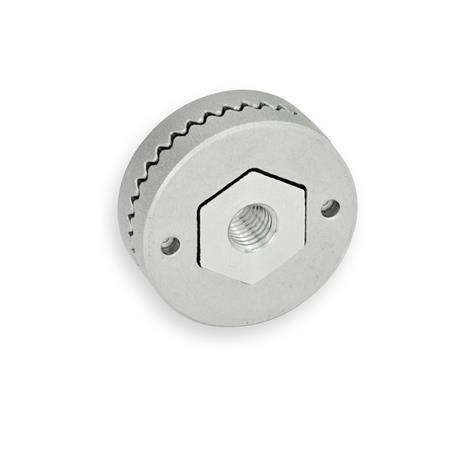

| Manufacturer designation (German) | Rastscheiben, Edelstahl, zum Anschweißen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23099090 |
|---|
