Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 25 |
|---|
| Form | KS - Abdeckkappe, gleitfähig |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 4,3 |
|---|
| h1 | 5,7 |
|---|
| h2 | 1 |
|---|
| h3 | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,013 kg |
|---|

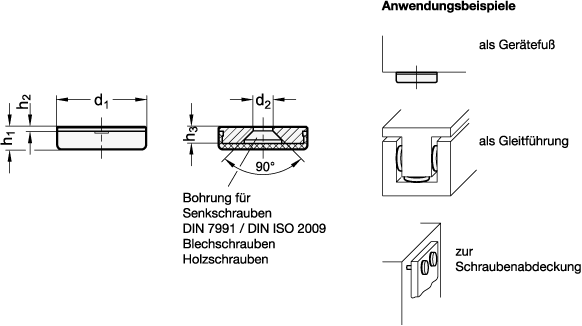

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 338 |
|---|
| Order designation | GN 338-25-KS |
|---|
| EAN | 4045525507487 |
|---|
| Manufacturer designation (German) | Scheiben mit Abdeckkappe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23090101 |
|---|
