Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 55 |
|---|
| d2 | B 28 |
|---|
| d2 Bohrungsreihe 1 | B 28 |
|---|
| Bohrungsreihe 2 | B 30 |
|---|
| d3 | 52 |
|---|
| d4 Bohrungsreihe 1 | 29,5 |
|---|
| b | 3 |
|---|
| s | 3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,006 kg |
|---|

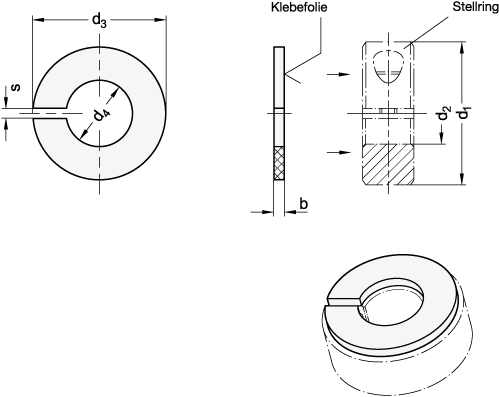

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7062.30 |
|---|
| Order designation | GN 7062.30-55-B28 |
|---|
| EAN | 4045525420328 |
|---|
| Manufacturer designation (German) | Dämpfungsscheiben, Elastomer, für geschlitzte Stellringe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23090190 |
|---|
