Technical data (manufacturer information, German terms)
| Werkstoff | ZD - Zink-Druckguss |
|---|
| Höhe l1 (Form B) | 60 |
|---|
| Breite l2 | 55 |
|---|
| Form | B - in der Breite justierbar |
|---|
| Oberfläche | SR - silber, RAL 9006, strukturmatt |
|---|
| b | 6,5 |
|---|
| d1 | 6,5 |
|---|
| d2 | 6 |
|---|
| h1 | 16,6 |
|---|
| h2 | 6 |
|---|
| h3 | 11,6 |
|---|
| h4 | 23,2 |
|---|
| DB, HB, B | 26 |
|---|
| B | 26 |
|---|
| m1 | 30 |
|---|
| m2 | 30 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,143 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data

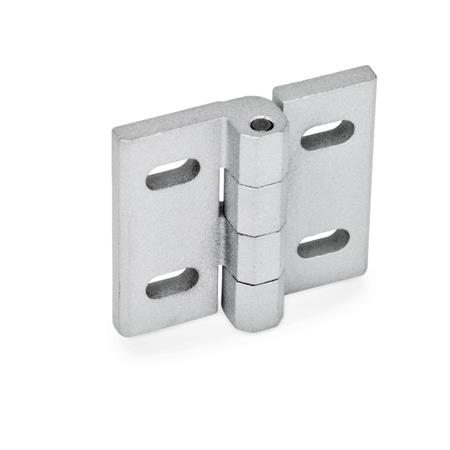

| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 235 |
|---|
| Order designation | GN 235-ZD-60-55-B-SR |
|---|
| EAN | 4045525594494 |
|---|
| Manufacturer designation (German) | Scharniere, Zink-Druckguss, justierbar |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
