Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Breite l1 | 75 |
|---|
| Länge l2 | 50 |
|---|
| Form | C - mit Senkbohrungen |
|---|
| l1 einseitig verlängert | 75 |
|---|
| d1 | 6 |
|---|
| d3 | 5 |
|---|
| d4 | 8,3 |
|---|
| m1 | 55 |
|---|
| m2 | 30 |
|---|
| m4 | 15 |
|---|
| s | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,079 kg |
|---|

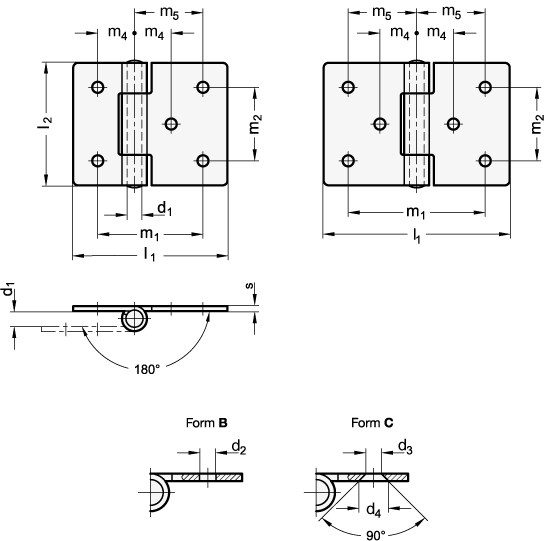

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 136 |
|---|
| Order designation | GN 136-ST-75-50-C |
|---|
| EAN | 4045525410978 |
|---|
| Manufacturer designation (German) | Blechscharniere, horizontal verlängert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
