Technical data (manufacturer information, German terms)
| Länge l1 | 139 |
|---|
| Bohrungsabstand m | 55 |
|---|
| Farbe | SW - schwarz, matt |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d1 | 6,5 |
|---|
| d2 | 8 |
|---|
| h1 | 16 |
|---|
| h2 | 8 |
|---|
| l2 | 36 |
|---|
| für Profilbreiten a - b - a | 40 - 60 - 40 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,071 kg |
|---|

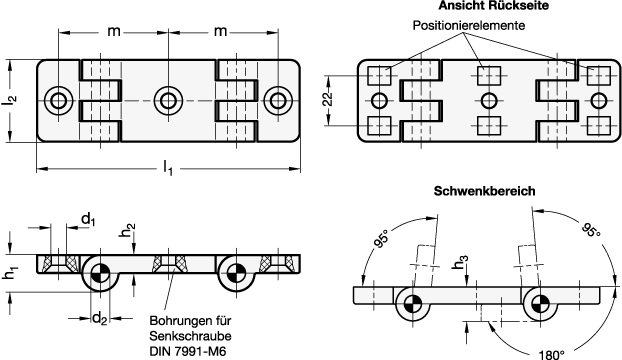

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 159.1 |
|---|
| Order designation | GN 159.1-139-55-SW |
|---|
| EAN | 4045525061224 |
|---|
| Manufacturer designation (German) | Doppel-Scharniere für Profilsysteme, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
