Technical data (manufacturer information, German terms)
| Breite l1 | 42 |
|---|
| Länge l2 | 42 |
|---|
| Form | NJ - nicht justierbar |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| d1 | 5,3 |
|---|
| d2 | 4 |
|---|
| h1 ≈ | 11 |
|---|
| h2 ≈ | 6,5 |
|---|
| h3 | 7,5 |
|---|
| l3 | 17 |
|---|
| m1 | 25 |
|---|
| m2 | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,051 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 238 |
|---|
| Order designation | GN 238-42-42-NJ-SW |
|---|
| EAN | 4045525542808 |
|---|

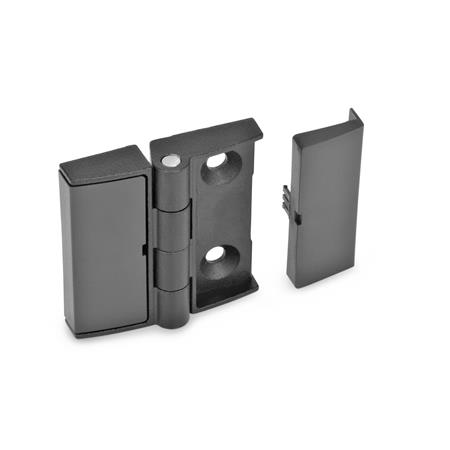

| Manufacturer designation (German) | Scharniere, Zink-Druckguss, justierbar, mit Abdeckung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
