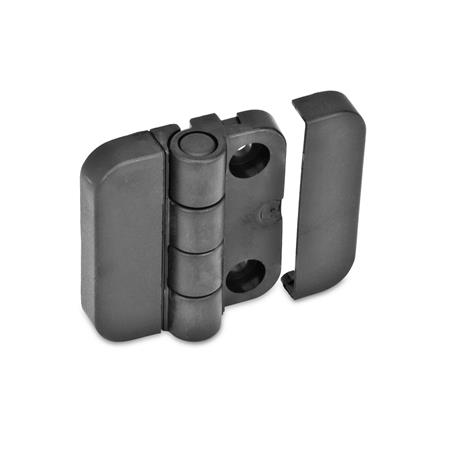

Scharniere mit Raststellungen GN 122.2, Kunststoff

Name: Scharniere mit Raststellungen GN 122.2, Kunststoff
Brand: Ganter
SKU: 122.2-45-50-CH

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Technical data (manufacturer information, German terms)

Breite l1	45
Länge l2	50
Form	CH - 2x2 Bohrungen für Zylinderschrauben
Werkstoff	KT - Kunststoff
l3	21,5
d1	4,5
d2	8
h1	14
h2	8
h3	7
m1	25
m2	32
t1	4,5
t2	4,5
RoHS	Ja
Gewicht	0,017 kg

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

Article data

Manufacturer	Ganter (Otto Ganter GmbH & Co. KG)
Standard part	GN 122.2
Order designation	GN 122.2-45-50-CH
EAN	4045525512696
Manufacturer designation (German)	Scharniere ohne Raststellungen, Kunststoff
Order unit	Piece
Customs tariff number	39263000
eCl@ss 5.1.4	23250304
