Technical data (manufacturer information, German terms)
| Werkstoff | ZD - Zink-Druckguss |
|---|
| Länge l1 | 90 |
|---|
| Gehäuselänge l2 | 40 |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| b1 | 22 |
|---|
| b2 | 16 |
|---|
| b3 | 5 |
|---|
| d | M 6 |
|---|
| l3 | 28 |
|---|
| l4 | 35 |
|---|
| sw | T30 |
|---|
| verwendbar für {Sp:s} | GN 515 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,072 kg |
|---|

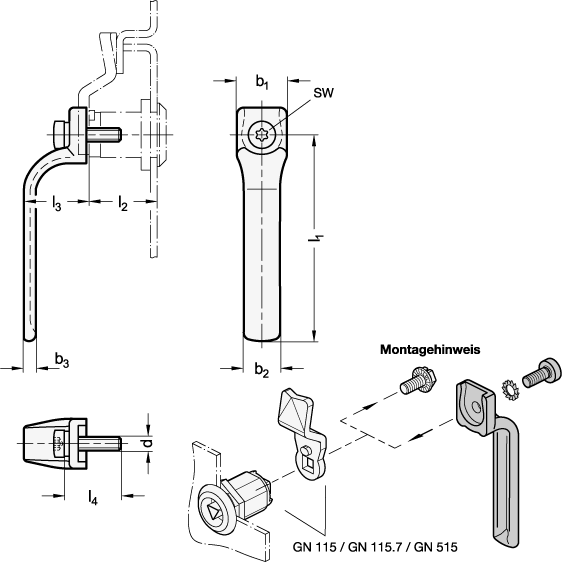

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 120.3 |
|---|
| Order designation | GN 120.3-ZD-90-40-SW |
|---|
| EAN | 4045525846791 |
|---|
| Manufacturer designation (German) | Innengriffe, Zink-Druckguss, für Verriegelungen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 79070000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
