Technical data (manufacturer information, German terms)
| Breite l1 | 28 |
|---|
| Länge l2 | 64 |
|---|
| Form | B - 2x2 Gewindestifte |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| a | 2 |
|---|
| b | 14,5 |
|---|
| d1 | M 5 |
|---|
| d2 | 8 |
|---|
| l3 | 6 |
|---|
| l4 | 12 |
|---|
| m | 19 |
|---|
| t | 7,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,030 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 160 |
|---|
| Order designation | GN 160-28-64-B |
|---|
| EAN | 4045525463288 |
|---|

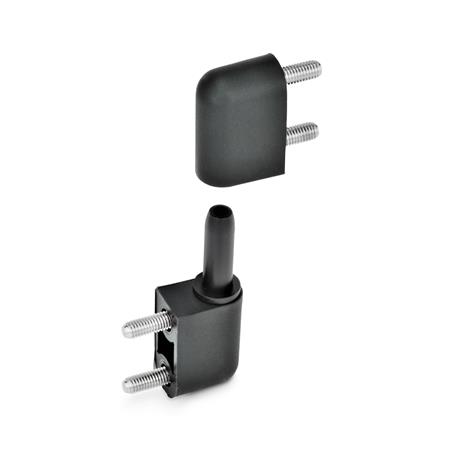

| Manufacturer designation (German) | Scharniere mit Exzenterstift, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
