Technical data (manufacturer information, German terms)
| Breite l1 | 60 |
|---|
| Länge l2 | 60 |
|---|
| Form | EJ - einseitig justierbar |
|---|
| Farbe | SR - silber, RAL 9006, strukturmatt |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| d1 | 6,3 |
|---|
| d2 | 6 |
|---|
| h1 ≈ | 16,5 |
|---|
| h2 ≈ | 8,5 |
|---|
| h3 | 11 |
|---|
| l3 | 26 |
|---|
| m1 | 36 |
|---|
| m2 | 36 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,174 kg |
|---|

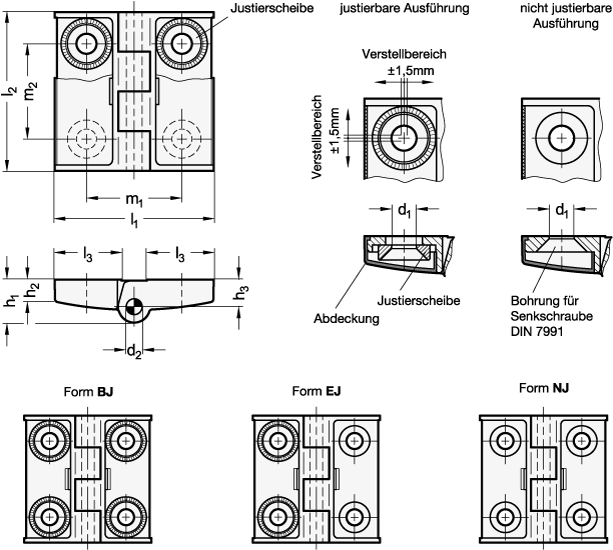

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 238 |
|---|
| Order designation | GN 238-60-60-EJ-SR |
|---|
| EAN | 4045525562349 |
|---|
| Manufacturer designation (German) | Scharniere, Zink-Druckguss, justierbar, mit Abdeckung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
