Technical data (manufacturer information, German terms)
| Breite l1 | 64 |
|---|
| Länge l2 | 65 |
|---|
| Form | H - in der Höhe justierbar |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d1 | 6,5 |
|---|
| d2 | 5 |
|---|
| h1 | 23 |
|---|
| h2 | 13,5 |
|---|
| h3 | 15 |
|---|
| h4 | 30 |
|---|
| l3 | 24 |
|---|
| m1 | 40 |
|---|
| m2 | 40 |
|---|
| t | 6,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,068 kg |
|---|

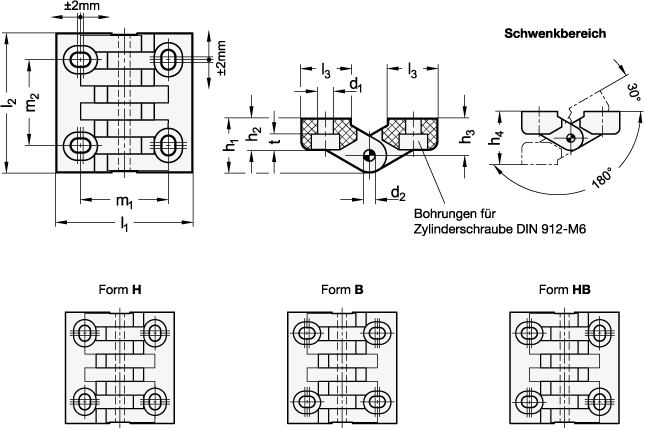

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 151.4 |
|---|
| Order designation | GN 151.4-64-65-H |
|---|
| EAN | 4045525680777 |
|---|
| Manufacturer designation (German) | Scharniere, Kunststoff, justierbar durch Langlöcher |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
