Technical data (manufacturer information, German terms)
| l1 (Form I) | 86 |
|---|
| l2 | 162 |
|---|
| Form | I - Scharnierflügel innenliegend |
|---|
| Kennzeichen | C - mit Senkbohrungen |
|---|
| Oberfläche | EL - eloxiert, naturfarben |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d1 | 6,6 |
|---|
| d2 | 14 |
|---|
| l3 | 80 |
|---|
| l5 | 43 |
|---|
| Form I | 55 |
|---|
| m3 | 50 |
|---|
| m4 | 32 |
|---|
| s | 3,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,113 kg |
|---|

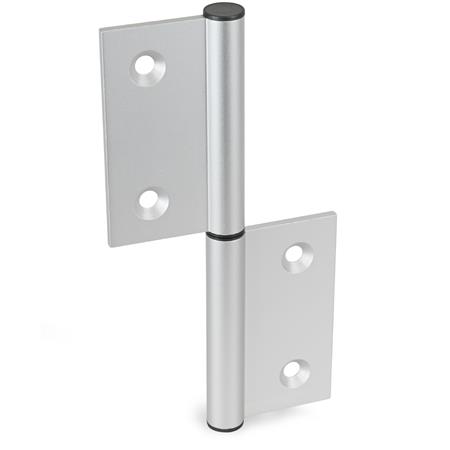

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2294 |
|---|
| Order designation | GN 2294-86-162-I-C-EL |
|---|
| EAN | 4045525534254 |
|---|
| Manufacturer designation (German) | Scharniere, aushängbar, für Aluminiumprofile / Flächenelemente |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
