Technical data (manufacturer information, German terms)
| Breite l1 | 70 |
|---|
| Länge l2 | 53 |
|---|
| Kabellänge (in Meter) l6 | 5 |
|---|
| Kennzeichen | SL - Bohrungen für Senkschraube, Schalter links |
|---|
| Form | CK - Anschlusskabel hinten |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| h1 | 16 |
|---|
| h2 | 8 |
|---|
| h3 | 16 |
|---|
| h4 | 14,5 |
|---|
| l3 | 110 |
|---|
| l4 | 51,5 |
|---|
| l5 | 22,5 |
|---|
| m1 | 45 |
|---|
| m2 | 34 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,440 kg |
|---|

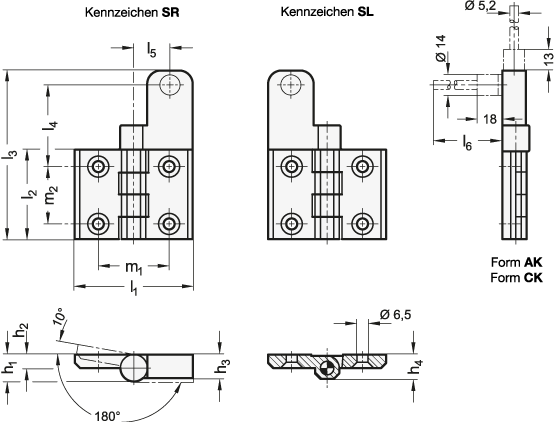

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 239.4 |
|---|
| Order designation | GN 239.4-70-53-SL-CK-5 |
|---|
| EAN | 4045525886384 |
|---|
| Manufacturer designation (German) | Schaltscharniere mit Anschlusskabel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 85369095 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
