Steckschlüssel für Verriegelungen GN 119.2
Steckschlüssel für Verriegelungen GN 119.2 – Ganter GN 119.2-86-VDE5-SW
Dimensional drawing Ganter GN 119.2-86-VDE5-SW
Mobile Preview: Steckschlüssel für Verriegelungen GN 119.2 – Ganter GN 119.2-86-VDE5-SW
Mobile Preview: Dimensional drawing Ganter GN 119.2-86-VDE5-SW

Steckschlüssel für Verriegelungen GN 119.2

Product No.:
119.2-86-VDE5-SW
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Länge l186
    FormVDE5 - mit Doppelbart d~2~ = 5,6
    OberflächeSW - schwarz, RAL 9005, strukturmatt
    WerkstoffZD - Zink-Druckguss
    l253
    b50
    d114
    d25,6
    für VerriegelungenGN 115 / GN 116.1 / GN 119 / GN 515 / GN 516 / GN 516.1 / GN 516.5
    RoHSJa
    Gewicht0,060 kg

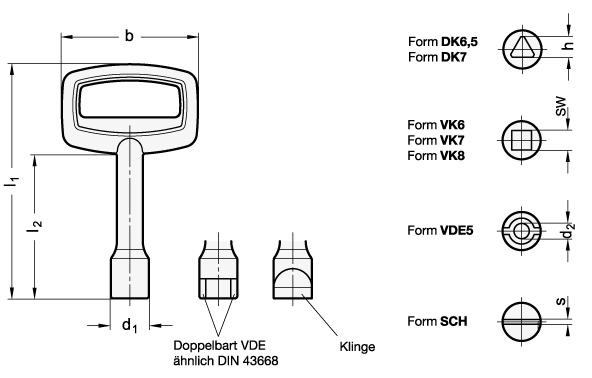

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 119.2
    Order designationGN 119.2-86-VDE5-SW
    EAN4045525769533
    Manufacturer designation (German)Steckschlüssel für Verriegelungen
    Order unitPiece
    Customs tariff number79070000
    eCl@ss 5.1.423200108
