Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| l1 | 60 |
|---|
| Form | R - Befestigungswinkel rechts |
|---|
| Oberfläche | MT - matt, gleitgeschliffen |
|---|
| d | 8,5 |
|---|
| h1 | 12,5 |
|---|
| h2 | 40 |
|---|
| h3 | 2,5 |
|---|
| l2 | 40 |
|---|
| l3 | 61 |
|---|
| l4 | 126 |
|---|
| l5 | 163 |
|---|
| l6 | 63,9 |
|---|
| l7 | 117,8 |
|---|
| l8 | 63,9 |
|---|
| l9 | 138,6 |
|---|
| m1 | 36 |
|---|
| m2 | 8 |
|---|
| r | 127 |
|---|
| s | 5 |
|---|
| x | 22 |
|---|
| y | 47 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,667 kg |
|---|

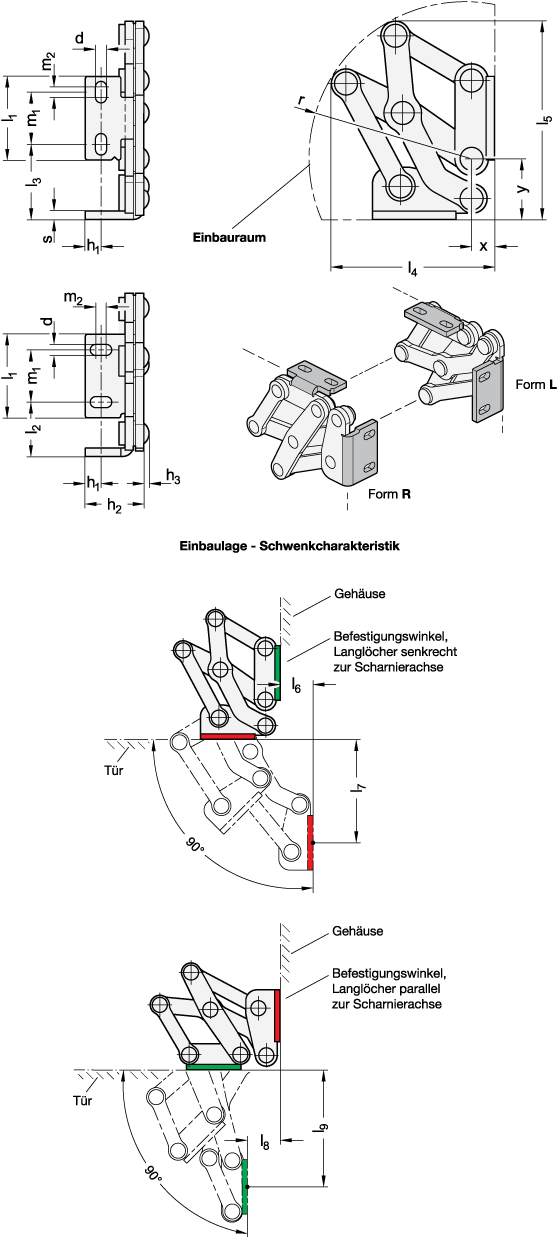

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7231 |
|---|
| Order designation | GN 7231-NI-60-R-MT |
|---|
| EAN | 4045525575738 |
|---|
| Manufacturer designation (German) | Mehrgelenkscharniere, Edelstahl, innenliegend, Öffnungswinkel 90° |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
