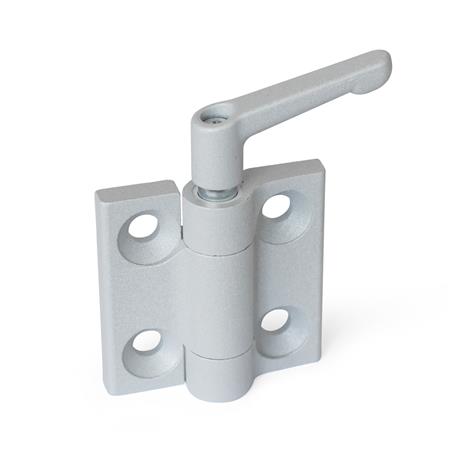

Scharniere GN 437.2, Festellbar, Zink-Druckguss, feststellbar

Name: Scharniere GN 437.2, Festellbar, Zink-Druckguss, feststellbar
Brand: Ganter
SKU: 437.2-ZD-60-60-A-SR

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Technical data (manufacturer information, German terms)

Werkstoff	ZD - Zink-Druckguss
l1	60
l2	60
Form	A - 2x2 Bohrungen für Senkschrauben
Farbe	SR - silber, RAL 9006, strukturmatt
d	8,3
h1	18,5
h2	7,5
h3	9,5
h4	19
h5 ≈	35
l3	20
l4	45
m1	36
m2	36
RoHS	Ja
Gewicht	0,191 kg

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

Article data

Manufacturer	Ganter (Otto Ganter GmbH & Co. KG)
Standard part	GN 437.2
Order designation	GN 437.2-ZD-60-60-A-SR
EAN	4045525535893
Manufacturer designation (German)	Scharniere, Zink-Druckguss, feststellbar
Order unit	Piece
Customs tariff number	83021000
eCl@ss 5.1.4	23250304
