Technical data (manufacturer information, German terms)
| Breite l1 | 48 |
|---|
| Länge l2 | 49 |
|---|
| Bohrungsdurchmesser d1 | 5,5 |
|---|
| Form | SH - 2x2 Bohrungen für Senkschrauben |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| Istmaß | 48 |
|---|
| d2 | 4 |
|---|
| h1 | 16,5 |
|---|
| h2 | 11,5 |
|---|
| h3 | 5 |
|---|
| h4 | 5 |
|---|
| h5 | 23 |
|---|
| l3 | 21,5 |
|---|
| m1 | 31 |
|---|
| m2 | 30,5 |
|---|
| Bohrungsabstand | 8,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,024 kg |
|---|

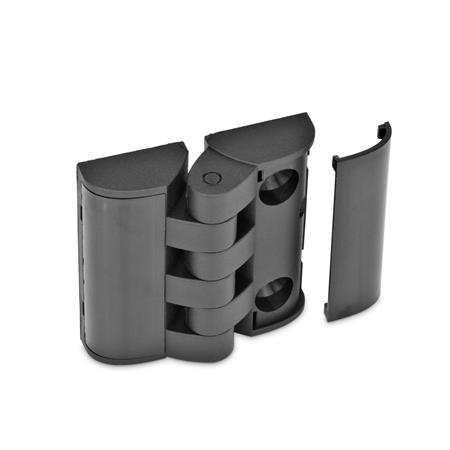

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 151.3 |
|---|
| Order designation | GN 151.3-48-49-5,5-SH |
|---|
| EAN | 4045525567252 |
|---|
| Manufacturer designation (German) | Scharniere mit Abdeckung, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
